This week in Solidworks things got a bit tricky, who knew having the right relations could make such a bit difference in your end product. We took a look at using the Fillet tool, Revolve tool, Loft tool and the Sweep tool. Some of the exercises also required us to sketch on different planes in order to achieve the shape that had to be created.
 |
| Shape constructed from multiple Boss Extrudes & fillets |
 |
| Same shape created through 1 sketch and the revolve tool |
 |
| Simple revolve |
 |
| Sketch into a revolve, this shape was super tricky to get right. ended up having to redo it a few times to get it just right |
 |

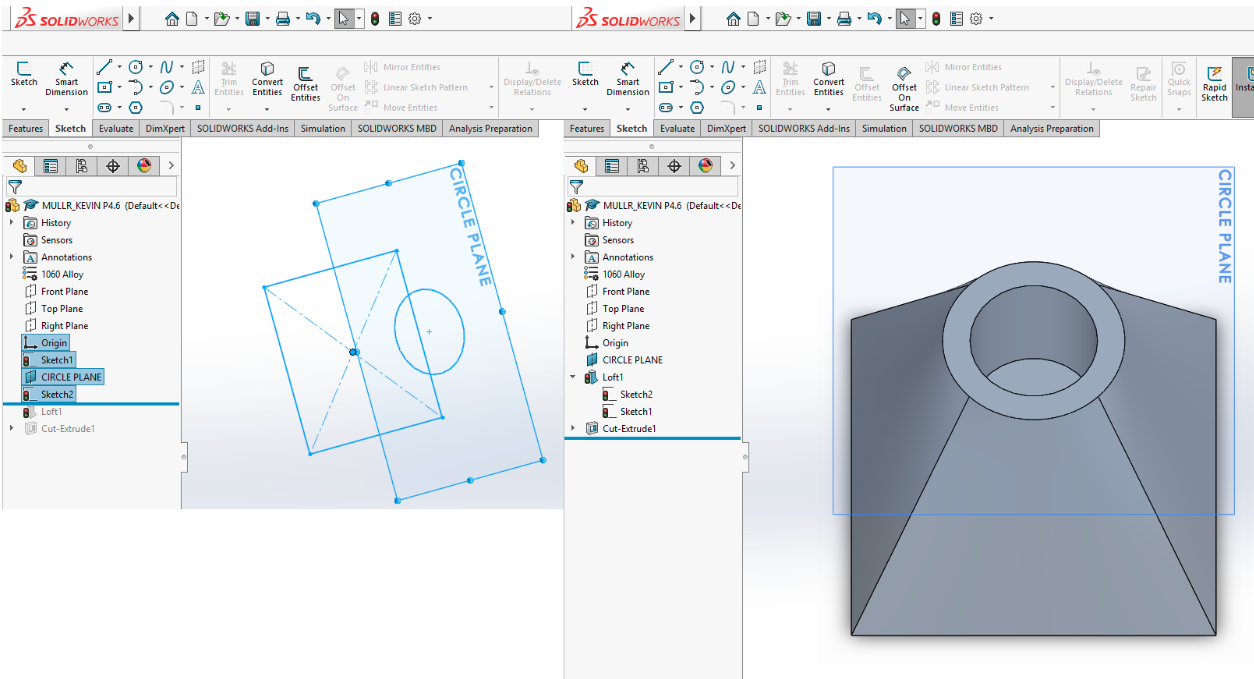

| Two offset planes combined using the Loft tool |
 |
| Using a path to create a sweep |
